德标波纹管阀门

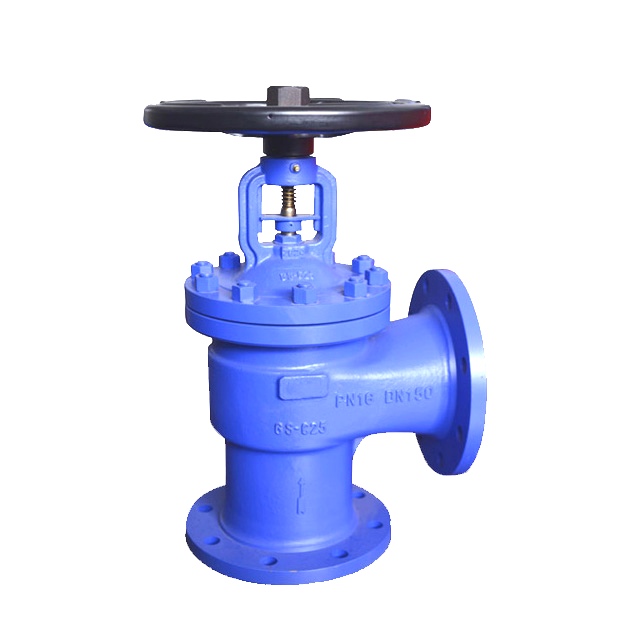

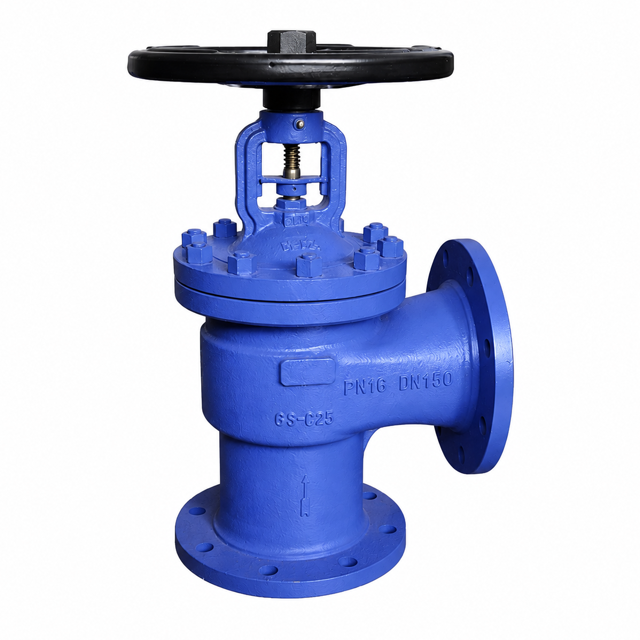

波纹管截止阀(直角)

口径 : DN15-DN500
压力: PN16-PN40
最高使用温度 : ≤425℃
材质:GS-C25(1.0619/WCB),1.4308(CF8), 1.4408(CF8M),SS321,904L etc.
波纹管材质: SS304, SS316, SS316L,SS321,SS316Ti ,Hastelly C276
应用:导热油系统,高温蒸汽系统,熔盐,冷热水系统,等等

性能优势Performance advangate

1. 波纹管是波纹管阀门的关键组件,采用自动滚焊,

焊在阀瓣与阀杆上,确保阀杆部件100%零泄露。

Bellow is the key part of bellow sealed valves,which is

welded to both the valve bonnet and valve stem, with

automatic roll welding. The metal bellow can keep the

stem part 100% no leakage.

2. 双密封设计(波纹管+填料)。 波纹管形成第一道

金属密封防止泄漏,如果波纹管失效,填料可以提供第二道密封。

Double seal design(bellows+packing). Bellow form a metal

seal to prevent leakage, and packing can provide seal if the bellow failed.

3. 堆焊阀座,即使在恶劣工况下,也能确保可靠的密封。

Overlay welded seat can keep reliable sealing under severe conditions.

4. 人体工程学设计手轮,使用寿命更长,操作轻松便捷且安全可靠。

Ergonomic hand wheel. It provide longer service life and easier

Operation.

技术规范TECHNICAL SPECIFICATION

设计标准Design standard: DIN EN 13709:2003

结构长度Face to face dimension: DIN EN 558-1:1995

连接法兰Flanged ends: DIN EN 1092-1:2002

对焊连接Welded ends: DIN EN 12627

试验与检验Test & inspection: DIN EN 12266:2003

应用APPLICATION

热油系统、蒸汽系统、冷热水系统等等

Thermal oil system, steam system, hot and cold water system etc.
